點擊數：2202HR3.19系列三路軟管卷筒

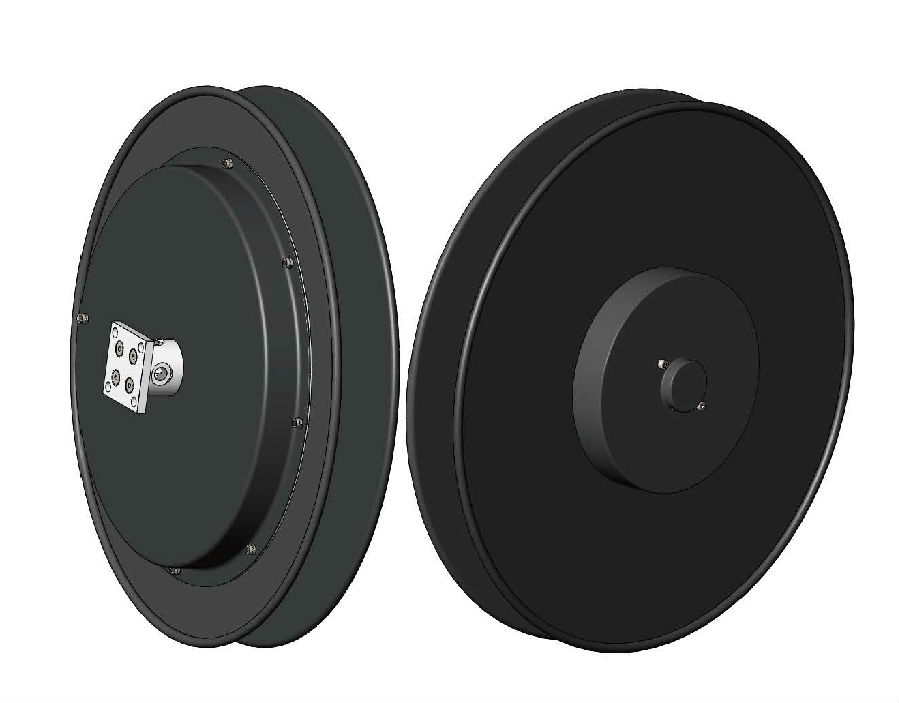

HR3.19系列三路軟管卷筒
HR3.19 三路軟管卷筒 最大壓力 | Max. work pressure ：300bar |  |
訂貨實例 | Or der Example
| HR3 | R | 520 | 19 | 10 | R7 |
| 雙管型卷筒 | R：右旋 L：左旋 | 盤子直徑 | 設計號 | 軟管內徑 | 軟管類型 |
可選軟管 | Available hose
4SP：合成橡膠4層鋼絲纏繞加強層軟管 | Synthetic rubber with 4 steel braid reinforcement
1SN：合成橡膠1層鋼絲編織加強層軟管 | Synthetic rubber with 1 steel braid reinforcement
2SN：合成橡膠2層鋼絲編織加強層軟管 | Synthetic rubber with 2 steel braid reinforcement
| 軟管內徑Φ Hose Inside diameter | 型號 Type | 最大壓力 Max.pressure (bar) | 軟管外徑Φ Outside Hose (mm) | 最小彎曲半徑 Min.bending (mm) | 重量 Weight kg/m | |
| Inch | mm | |||||
| 1/2" | 12.5 | 1SN | 160 | 21.5 | 180 | 0.45 |
| 2SN | 275 | 23.7 | 180 | 0.65 | ||
| 4SP | 415 | 24.6 | 230 | 0.93 | ||
| 5/8" | 16 | 1SN | 130 | 24.7 | 200 | 0.51 |
| 2SN | 250 | 26.3 | 200 | 0.79 | ||
| 4SP | 360 | 28.5 | 250 | 1.13 | ||
| 3/4" | 19 | 1SN | 105 | 28.6 | 240 | 0.64 |
| 2SN | 215 | 30.2 | 240 | 0.95 | ||
| 4SP | 350 | 32 | 300 | 1.53 | ||

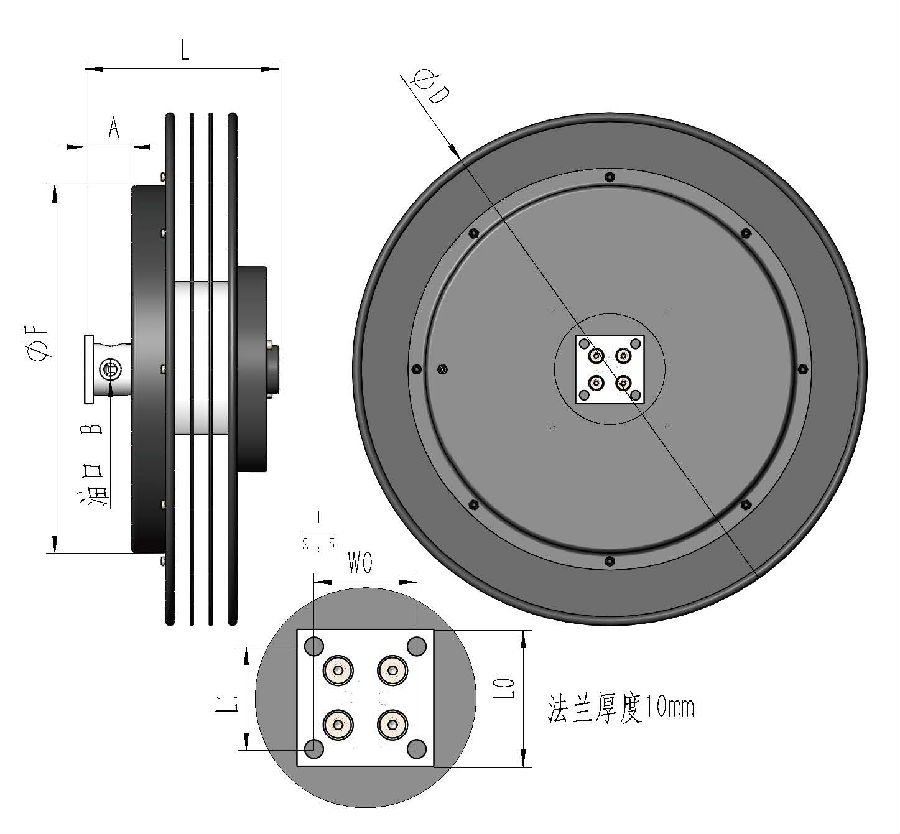

| 型號 Type | A | B | D | E | 軟管內徑 Inside Hose | 管型|Hose type-1SN-2SN | 管型|Hose type-4SP | ||
| mm | 總長(m) total length | 工作行程(m) Usable Length | 總長(m) total length | 工作行程(m) Usable Length | |||||
| HR3R(L).420.19.12.XX | 246 | 209 | 420 | 322 | 1/2" | 2.6 | 2.1 | 2.6 | 2.1 |
| HR3R(L).420.19.16.XX | 5/8" | 2.6 | 2.1 | 2.6 | 2.1 | ||||
| HR3R(L).420.19.19.XX | 3/4" | 2.6 | 2.1 | 1.8 | 1.3 | ||||
| HR3R(L).470.19.12.XX | 246 | 209 | 478 | 422 | 1/2" | 4.5 | 4 | 4 | 3.5 |
| HR3R(L).470.19.16.XX | 5/8" | 4 | 3.5 | 4 | 3.5 | ||||
| HR3R(L).470.19.19.XX | 3/4" | 4 | 3.5 | 3 | 2.5 | ||||
| HR3R(L).520.19.12.XX | 246 | 209 | 520 | 422 | 1/2" | 5.5 | 5 | 5.5 | 5 |
| HR3R(L).520.19.16.XX | 5/8" | 5.5 | 5 | 4.5 | 4 | ||||
| HR3R(L).520.19.19.XX | 3/4" | 4.2 | 3.7 | 4.2 | 3.7 | ||||
| HR3R(L).570.19.12.XX | 256 | 209 | 570 | 422 | 1/2" | 7.2 | 6.7 | 7.2 | 6.7 |
| HR3R(L).570.19.16.XX | 5/8" | 7.2 | 6.7 | 6 | 5.5 | ||||
| HR3R(L).570.19.19.XX | 3/4" | 5.9 | 5.4 | 5.9 | 5.4 | ||||
| HR3R(L).600.19.12.XX | 256 | 209 | 620 | 422 | 1/2" | 9.5 | 9 | 9 | 8.5 |
| HR3R(L).600.19.16.XX | 5/8" | 9.5 | 8.7 | 7.5 | 7 | ||||
| HR3R(L).600.19.19.XX | 3/4" | 7.6 | 7.1 | 7.3 | 6.8 | ||||
| HR3R(L).700.19.12.XX | 256 | 209 | 720 | 422 | 1/2" | 15 | 14.5 | 13 | 12.5 |
| HR3R(L).700.19.16.XX | 5/8" | 13.4 | 12.9 | 11.5 | 11 | ||||
| HR3R(L).700.19.19.XX | 3/4" | 10 | 9.5 | 10 | 9.5 | ||||
| HR3R(L).800.19.12.XX | 256 | 209 | 820 | 532 | 1/2" | 20 | 19 | 17 | 16 |
| HR3R(L).800.19.16.XX | 5/8" | 16 | 15 | 16 | 15 | ||||
| HR3R(L).800.19.19.XX | 3/4" | 14.5 | 13.5 | 14 | 13 | ||||
