點擊數：2348HR1型單管軟卷卷筒(標準型）
HR1系列單管軟管卷筒（標準型）
單管標準型｜Single hose reels standard
最大壓力 | Max. work pressure ：350bar
最大流量 | Max. flow rate ： 135L/min
最大速度 | Max. hose speed : 30M/min

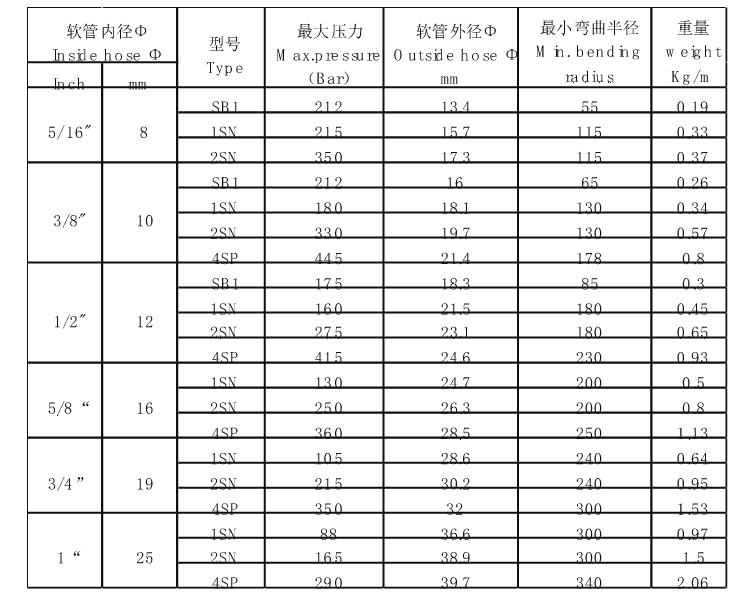

軟管的內徑及通流能力：
軟管內徑 Inside hose | 流量 Flow |
| 8 | 30L/min |
| 10 | 30L/min |
| 12 | 40L/min |
| 16 | 60L/min |
| 19 | 80L/min |
| 25 | 135L/min |
安裝方式 | Mounting
 |  |  |
橫向安裝 Horizontal | 垂直向上 Vertical up | 垂直向下 Vertical down （可要求|On request） |
可選軟管 | Available hose
4SP：合成橡膠4層鋼絲纏繞加強層軟管 | Synthetic rubber with 4 steel braid reinforcement。
1SN：合成橡膠1層鋼絲編織加強層軟管 | Synthetic rubber with 1 steel braid reinforcement 。
2SN：合成橡膠2層鋼絲編織加強層軟管 | Synthetic rubber with 2 steel braid reinforcement 。
SB 1：熱塑性塑料1層鋼絲編織加強層軟管 | Thermoplastic with 1 steel braid reinforcement 。
訂貨實例 | Order Example
| HR1 | R | 600 | 12 | 2SN | |
| 1根軟管卷筒 1 Ports hose reel | R：右旋 | Right L：左旋 | Left | 盤子直徑 Flange Diameter | 設計號 Design | 軟管內徑 Inside Hose | 軟管類型 Hose Type |
| HR：軟管卷筒 | Hose reel CR：電纜卷筒 | Cable reel | |||||
參數表：
型號 Type | A | B | D | E | F | 軟管內徑 Inside hose | 管型-with hose SB1-1SN-2SN-4SP | |
mm | 總長 Total length | 工作行程 Usable length | ||||||
HR1R(L).295.08.XX | 150 | 82 | 295 | 37 | 272 | 5/16" | 2.1 | 1.8 |
HR1R(L).295.10.XX | 3/8" | 1.5 | 1.2 | |||||
HR1R(L).320.08.XX | 150 | 82 | 325 | 37 | 272 | 5/16" | 3 | 2.7 |
HR1R(L).320.10.XX | 3/8" | 2.5 | 2.2 | |||||
HR1R(L).340.08.XX | 150 | 82 | 340 | 37 | 272 | 5/16" | 3.6 | 3.3 |
HR1R(L).340.10.XX | 3/8" | 2.7 | 2.4 | |||||
HR1R(L).340.12.XX | 1/2“ | 2.7 | 2.4 | |||||
HR1R(L).370.08.XX | 150 | 82 | 370 | 37 | 322 | 5/16" | 4.3 | 4 |
HR1R(L).370.10.XX | 3/8" | 3.5 | 3.2 | |||||
HR1R(L).370.12.XX | 1/2“ | 3 | 2.7 | |||||
HR1R(L).400.08.XX | 150 | 92 | 400 | 47 | 322 | 5/16" | 4.5 | 4.2 |
HR1R(L).400.10.XX | 3/8" | 5 | 4.7 | |||||
HR1R(L).400.12.XX | 1/2“ | 3 | 2.7 | |||||
HR1R(L).420.08.XX | 160 | 92 | 420 | 47 | 322 | 5/16" | 6 | 5.7 |
HR1R(L).420.10.XX | 3/8" | 5 | 4.7 | |||||
HR1R(L).420.12.XX | 1/2“ | 5 | 4.7 | |||||
HR1R(L).420.16.XX | 5/8” | 2.6 | 2.3 | |||||
HR1R(L).470.08.XX | 160 | 92 | 478 | 47 | 322 | 5/16" | 8.5 | 8.2 |
HR1R(L).470.10.XX | 3/8" | 7.6 | 7.3 | |||||
HR1R(L).470.12.XX | 1/2“ | 6.5 | 6.2 | |||||
HR1R(L).470.16.XX | 5/8” | 4.1 | 3.8 | |||||
HR1R(L).470.19.XX | 3/4“ | 2.7 | 2.4 | |||||
HR1R(L).520.08.XX | 160 | 92 | 520 | 47 | 422 | 5/16" | 10 | 9.7 |
HR1R(L).520.10.XX | 3/8" | 9.3 | 9 | |||||
HR1R(L).520.12.XX | 1/2“ | 8.2 | 7.9 | |||||
HR1R(L).520.16.XX | 166 | 102 | 5/8” | 5 | 4.7 | |||
HR1R(L).520.19.XX | 3/4“ | 4.2 | 3.9 | |||||
HR1R(L).520.25.XX | * | * | * | * | 1” | 2.8 | 2.5 | |
HR1R(L).570.10.XX | 160 | 92 | 570 | 47 | 422 | 3/8" | 11 | 10.7 |
HR1R(L).570.12.XX | 1/2“ | 10 | 9.7 | |||||
HR1R(L).570.16.XX | 166 | 102 | 5/8” | 5.7 | 5.4 | |||
HR1R(L).570.19.XX | 3/4“ | 5.8 | 5.5 | |||||
HR1R(L).570.25.XX | * | * | * | * | 1” | 4.4 | 4.1 | |
HR1R(L).600.10.XX | 160 | 92 | 620 | 47 | 422 | 3/8" | 12.5 | 12.2 |
HR1R(L).600.12.XX | 1/2“ | 11.5 | 11.2 | |||||
HR1R(L).600.16.XX | 166 | 102 | 5/8” | 7.5 | 7.2 | |||
HR1R(L).600.19.XX | 3/4“ | 7 | 6.7 | |||||
HR1R(L).600.25.XX | * | * | * | * | 1” | 6 | 5.7 | |
HR1R(L).650.10.XX | 160 | 92 | 650 | 47 | 422 | 3/8" | 14.8 | 14.5 |
HR1R(L).650.12.XX | 1/2“ | 13.8 | 13.5 | |||||
HR1R(L).650.16.XX | 166 | 102 | 5/8” | 9.4 | 9.1 | |||
HR1R(L).650.19.XX | 3/4“ | 7.8 | 7.5 | |||||
HR1R(L).650.25.XX | * | * | * | * | 1” | 6.3 | 6 | |
HR1R(L).700.10.XX | 277 | 92 | 720 | 47 | 422 | 3/8" | 18.5 | 18.2 |
HR1R(L).700.12.XX | 1/2“ | 14.5 | 14.2 | |||||
HR1R(L).700.16.XX | * | * | * | * | 5/8” | 11.5 | 11.2 | |
HR1R(L).700.19.XX | 3/4“ | 9.8 | 9.5 | |||||
HR1R(L).700.25.XX | 1” | 8.4 | 8.1 | |||||
